3D microscope |
|
|
| |
Feature
A all new three dimensional vision inspective system. With changeable continuous magnifications (zoom lens) and multi-view inspection which can exclude dead corners of usual microscopes.
Provides you a new visual inspective system.
|
|
|
Zoom |
0.65X-4.5X |
|
Standard magnification |
50X-300X |
|
Light source |
Ring of LED |
|
Magnification |
50X-300X |
|
View angle |
45 degrees/55 degrees (Option) |
|
Standard table |
CCD camera,
1/3 inch colorful CCD | |
|
|
|
Zoom |
0.25X-1.8X |
|
Standard magnification |
15X-110X |
|
Light source |
Ring of LED |
|
Magnification |
15X/30X/60X/90X/110X |
|
View angle |
45 degrees/55 degrees (Option) |
|
Standard table |
coarse-tuning and fine-tuning for adjustment
CCD camera, 1/3 inch colorful CCD | |

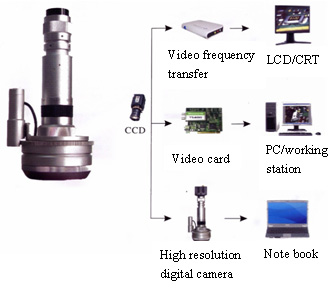

3D microscope working diagram
Functions of measurement
Applications
-
The SMT processes. Incoming inspection and quality analysis.
-
Changed to different reflective 3D module for full of view on request.
-
Can be changed to 2D diagram for inspection and measuring picture outputs. Pictures can be saved. Electrically rotation of 360 degrees.
-
Inspection for solder pads, the conditions of hole on steel plates and cliff of steel
-
Full view inspections for bio-samples.
-
Inspection for cosmetics and medical science.
Applications of diagram
- Zoom lens with multi-view inspection
- Flexible connection and convenient control
- Ring LED illumination, 3D clear image
- More depth-of-field, higher resolution (need digital camera supported)
- Efficient management of picture files and printing function
- Precision measuring function (need computer supported)
- One machine with multi-functions
|
|
 |
| |
